SpringBud FD 500B FDA Fetal Heart Doppler

The device is suitable for use after the 12th week of pregnancy.

Notice:
Please be aware that this device is used for hearing a baby’s heartbeat only. It is not a replacement for regular doctor visits. This product is not a medical device and is not intended to treat, cure, prevent or diagnose any medical condition nor to derive any medical conclusion based on its findings. You should never delay seeking medical advice, disregard medical advice, or discontinue medical treatment because of using this product. If you have any medical conditions, questions, or concerns, please immediately consult with a professional health care provider.

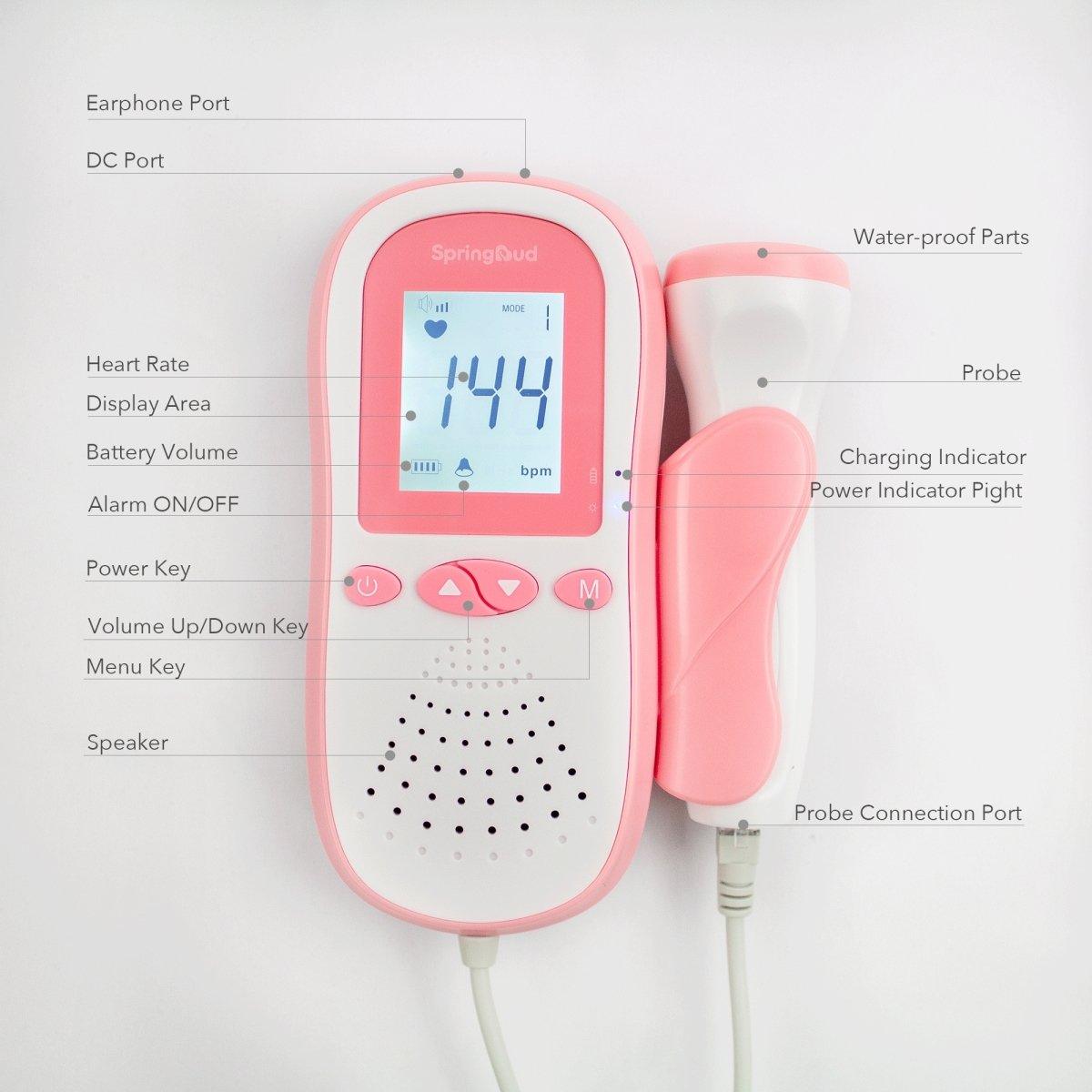

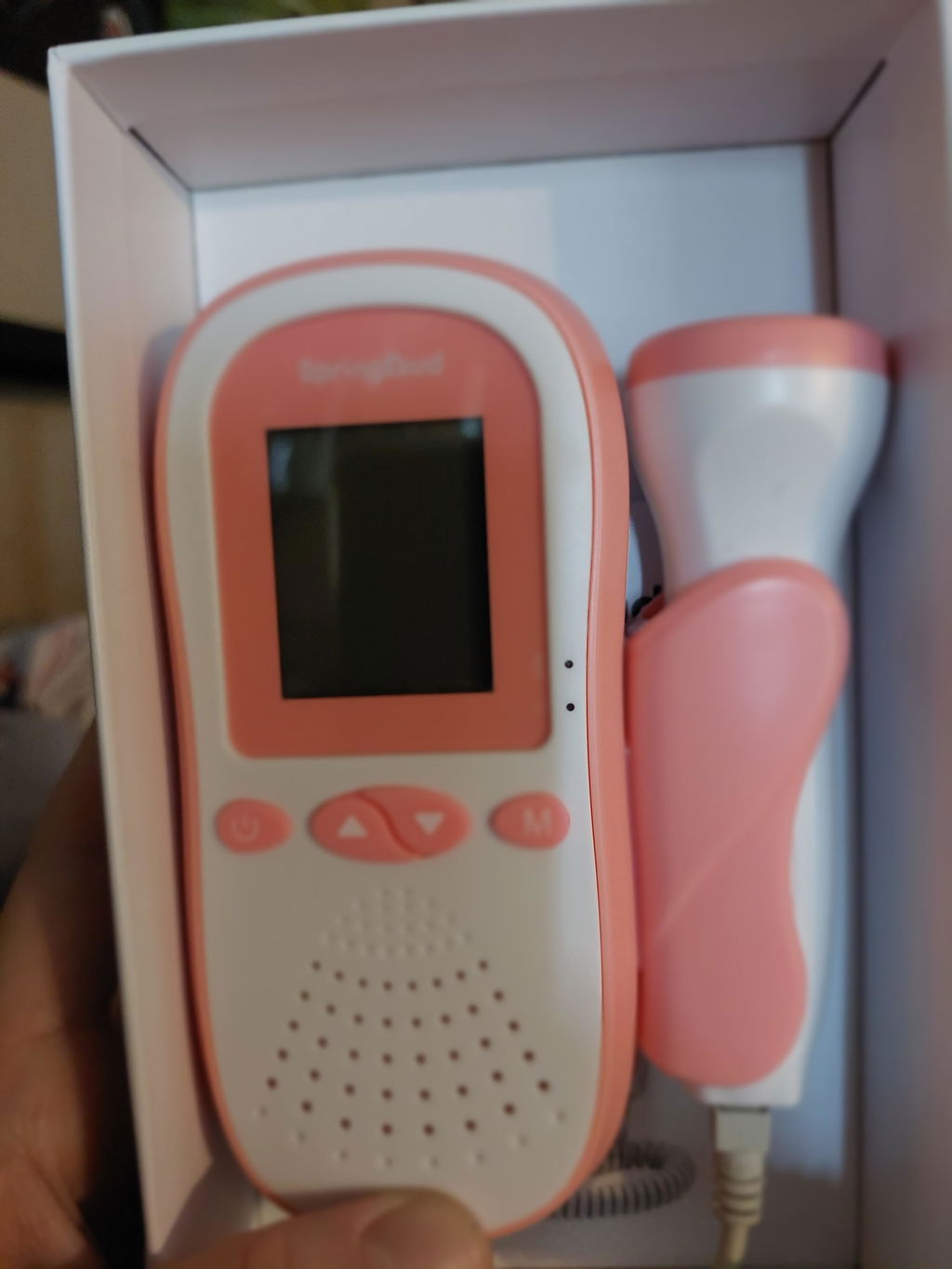

SpringBud FD-500B Fetal Doppler tracks a baby’s heartbeat with a 2MHz Probe by using the latest technology. It allows new moms to hear the heartbeat of their babies in an easy way and reduce anxiety. It comes with an LCD screen, headphone jack and built-in speaker. The LCD screen displays the battery status, and heart rate in BPM (Beats Per Minute).

Features:
1. High sensitivity doppler probe
2. Easy to use
3. Output for headphone and built-in speaker
4. Clearly hear your baby’s sounds of heartbeat
5. Real-time FHR display on the LCD screen

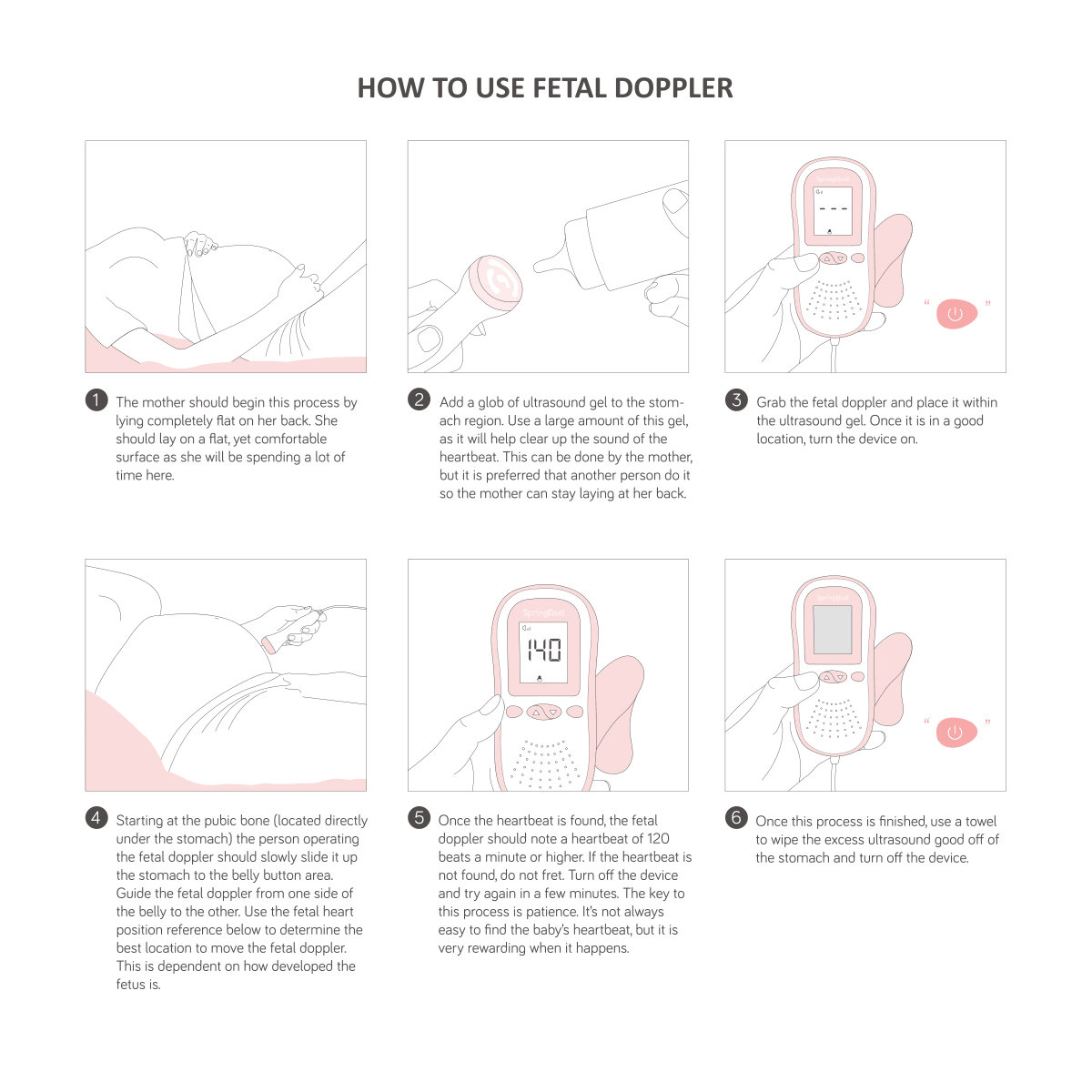

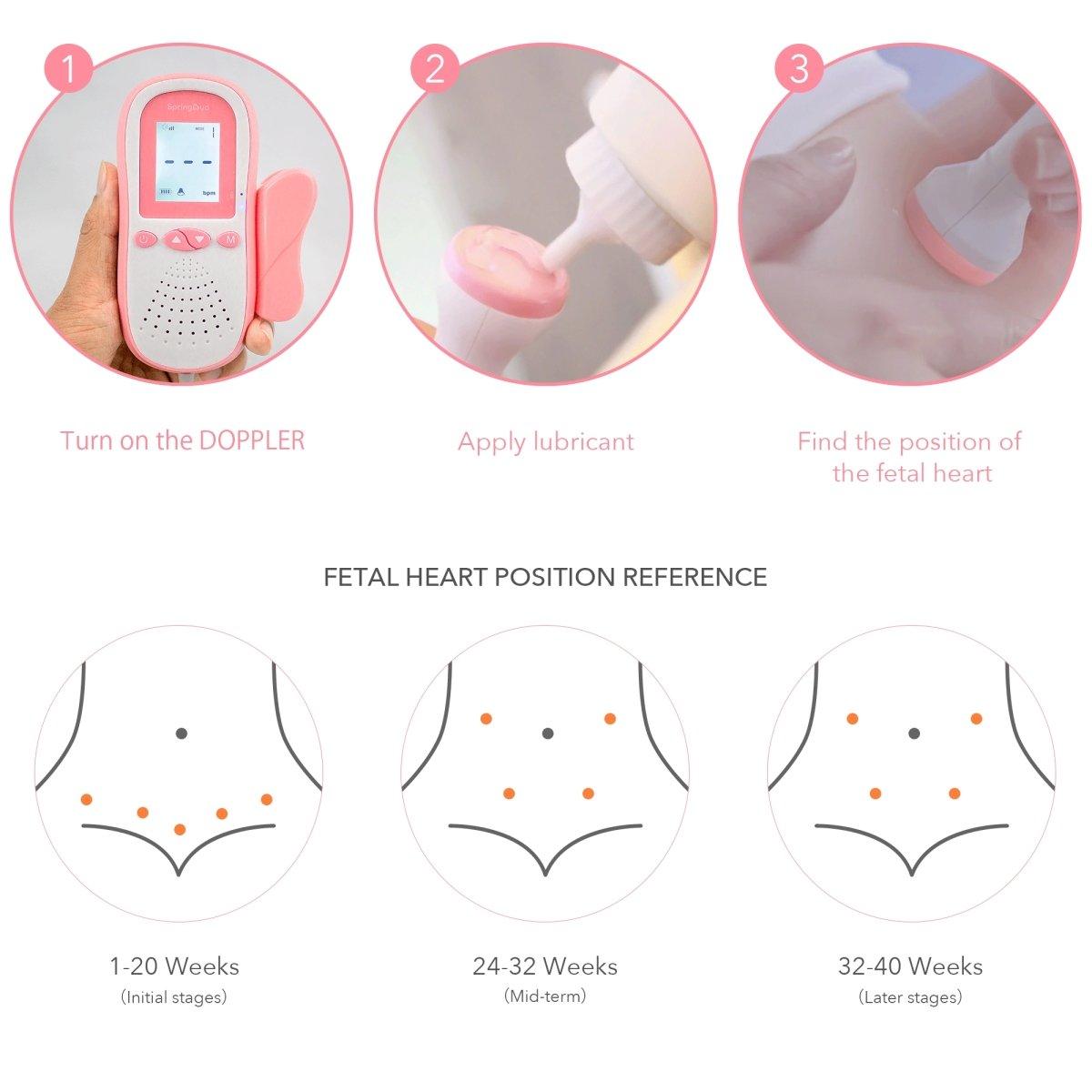

Instructions
1. Connect the probe with the detector’s main body
2. Lying completely flat on the back.
3. Add a glob of ultrasound gel to the stomach region
4. Grab the fetal doppler and place it within the ultrasound gel. Once it is in a good location, turn the device on.
5. Starting at the pubic bone (located directly under the stomach) the person operating the fetal doppler should slowly slide it up the stomach to the belly button area.

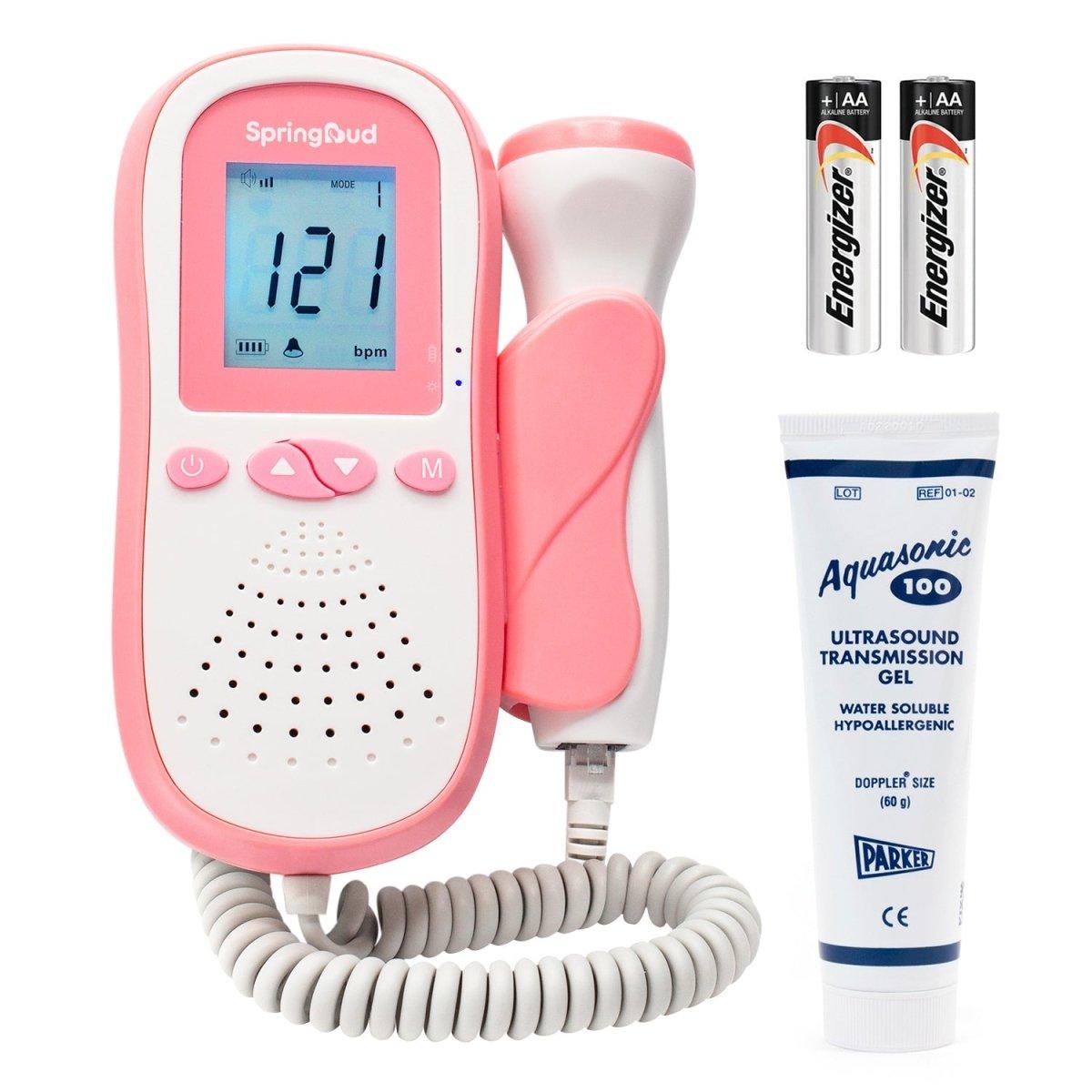

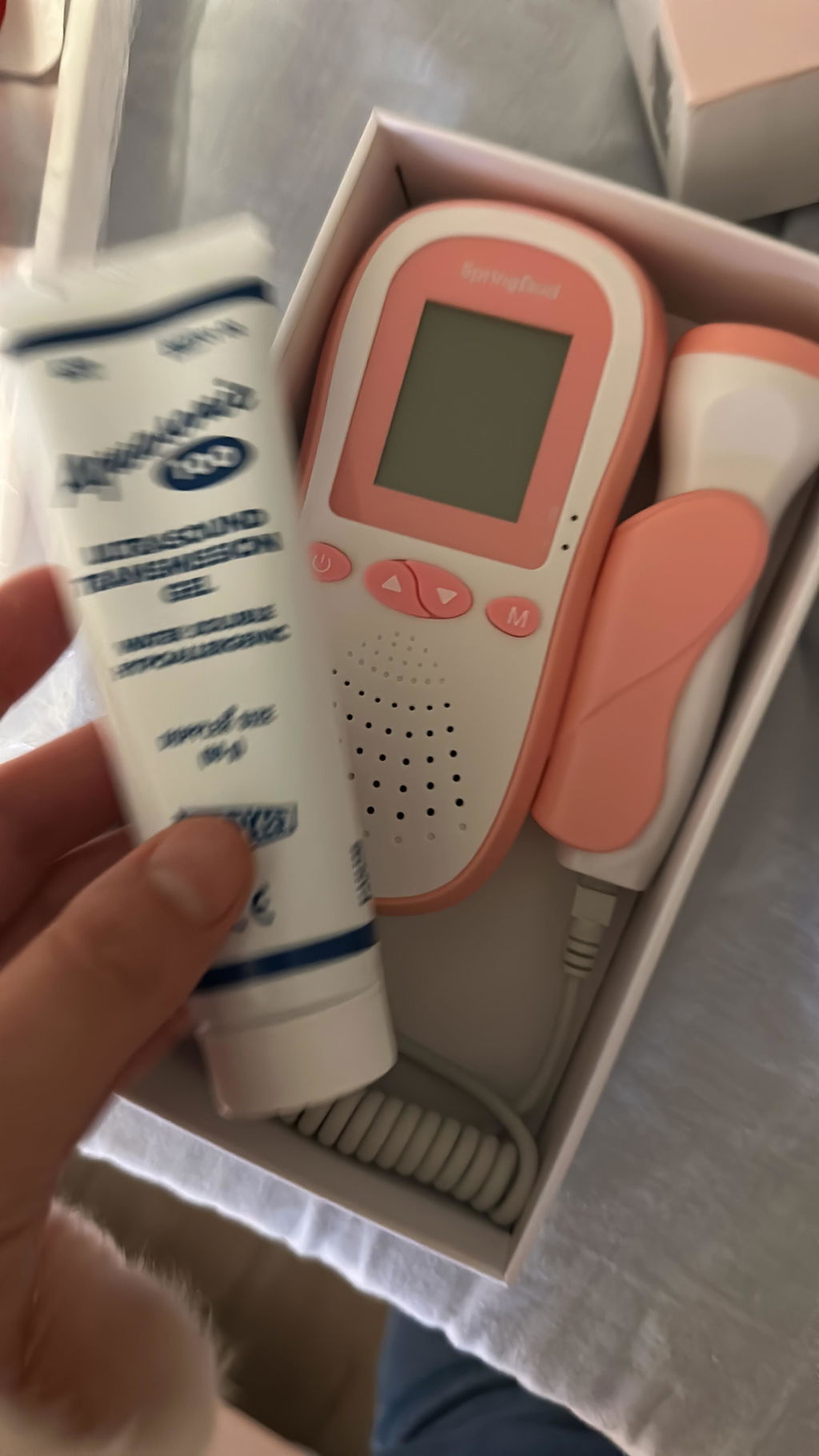

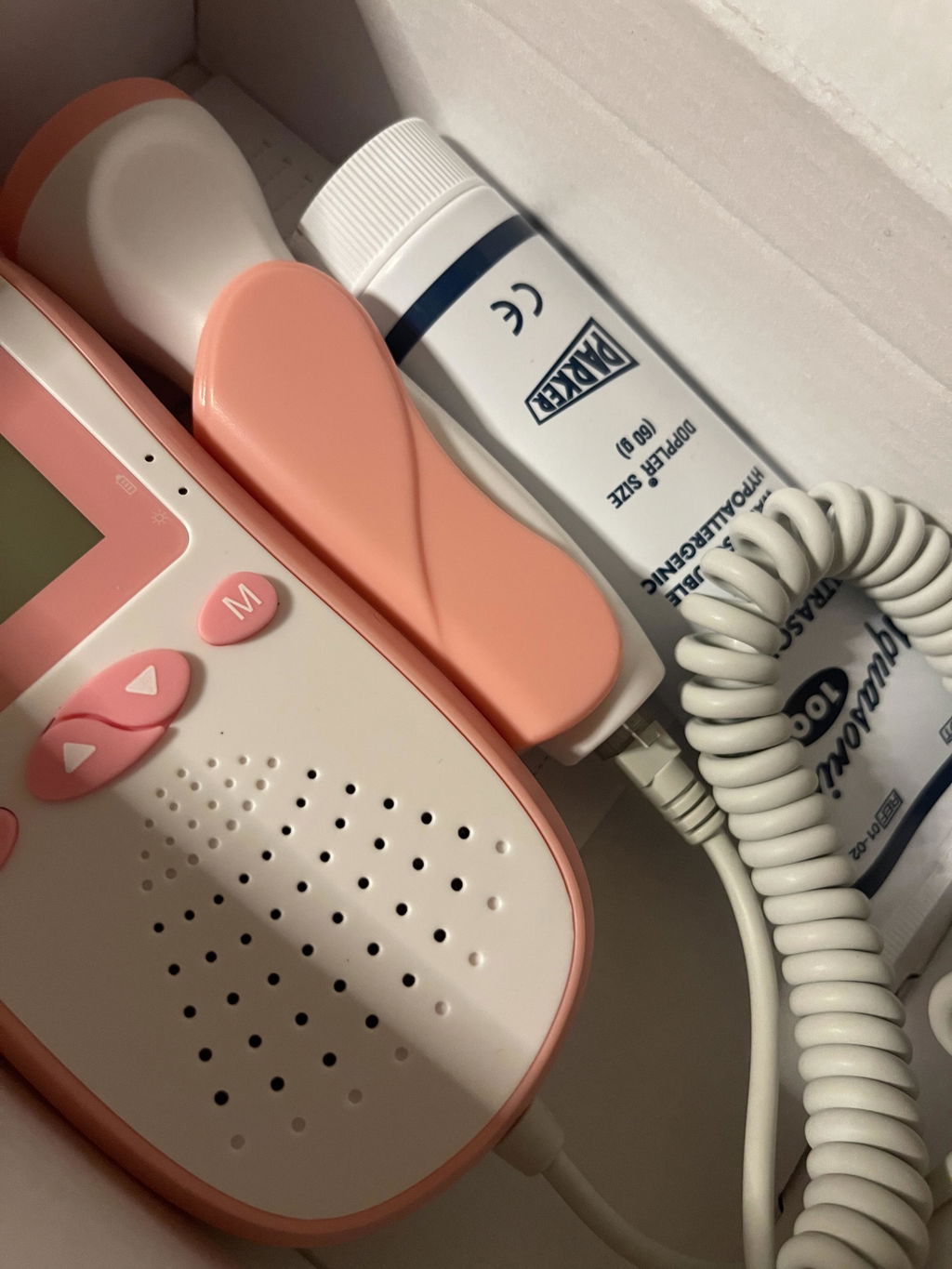

Package includes:
SpringBud FD-500B Fetal Doppler x 1
Doppler Probe x 1
AA Batteries x 2
User Manual x 1
Ultrasound Gel x 1

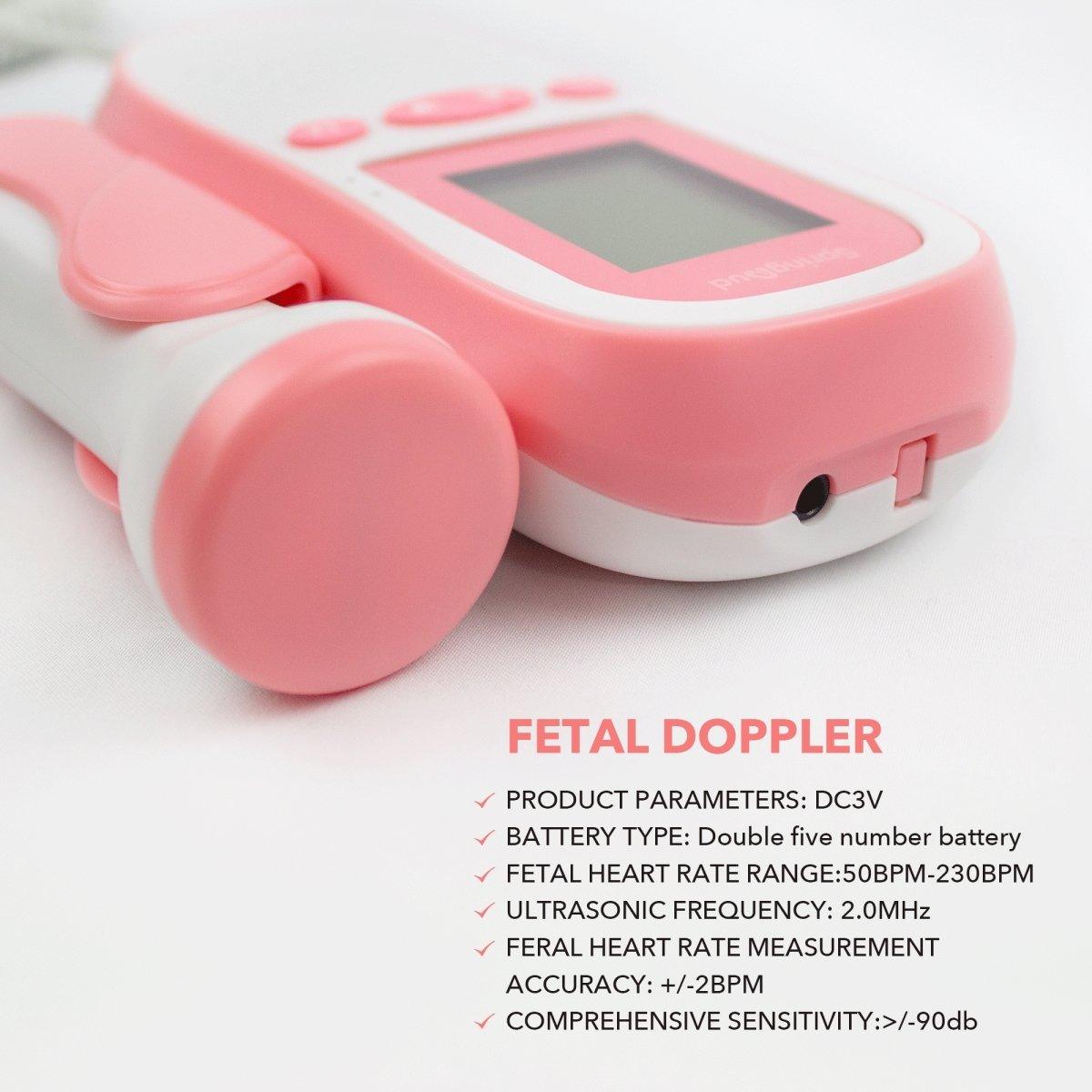

Technical Specifications:
FHR Range: 50BPM - 230BPM
Resolution: 1 BPM
Accuracy: ±2 BPM
Overall Sensitivity: ≥ 104.3dB
Probe: 2.0 MHz
Power Consumption: < 0.8 W
Output Power: 10-45 mW
Voltage: DC 3.0 V
Audio Output Power: Requirement:3.6V DC-4.2V DC
Power Source: 2 x AA 1.5V alkaline batteries
Auto Shut-off: After 1 minute of no signal, power off automatically
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Working Temperature: 41°F~104°F
Storage Temperature: -77°F~158°F
Humidity: 25%~80%
Atmospheric Pressure: 86kPa – 106kPa
Display Screen: 35.04mm x 28.03mm LCD
Weight: approximately 200g (including 2 AA batteries)
Dimension: 135mm(L) x 95mm(W) x 35mm(H)
